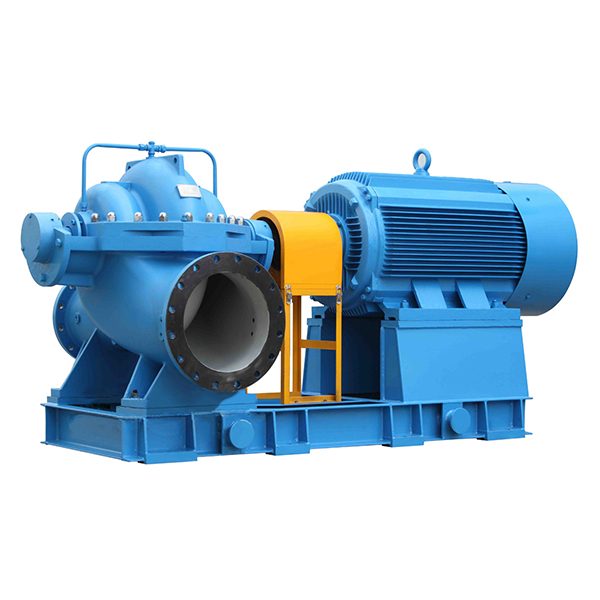

AHS/XS Split case pump

Water supply & delivery

Water conservancy

Fire safety

Booster

Metallurgy – Circulating & cooling water

Irrigation

Seawater desalination

Environmental engineering

Capacity: 75~15000m³/h

Head: 12~200m

Speed: 2900rpm,1450rpm,

980rpm,730rpm,590rpm

(Operating under 60Hz is

subject to our calculation)

Working Pressure: Max 25bar

Temperature: Max 105°C

Suction: DN125~1200

Discharge: DN80~1000

e.g.

1）Model: XS500-520，Q=3000m3/h，H=20m，n=980rpm

2）Model: XS350-360，Q=1500m3/h，H=21m，n=1450rpm

3）Model: XS350-510，Q=2500m3/h，H=70m，n=1450rpm

4）Model: XS200-320，Q=800m3/h，H=20m，n=1450rpm

5）Model: XS250-480，Q=1100m3/h，H=40m，n=1450rpm

AHS250-600B:

AHS is series code

Outlet is DN250

Imp dia is 600mm

Impeller is Type B
